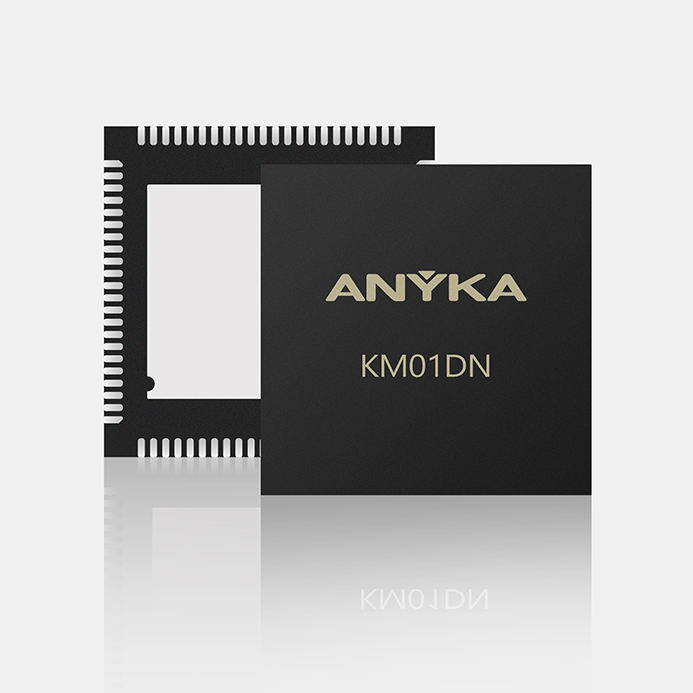

KM01D/KM01N

Overview

The KM01D and KM01N processors are specifically designed for Artificial Intelligence & Internet of Things (AIoT) cameras and other smart terminal applications, supporting advanced applications such as object detection, object tracking, facial recognition and intelligent video surveillance. Equipped with the ARM926EJ-S core, the KM01D and KM01N processors integrate a Neural Network Processing Unit (NPU), an Image Signal Processor (ISP), and an H.265/H.264 video encoder, delivering efficient image processing and high-efficiency, high-fidelity video encoding at ultra-low power consumption. Besides, the secure boot function safeguards firmware integrity and ensures trusted system startup. Additionally, the processors feature a rich set of peripheral interfaces, including MMC/SD/SDIO, Ethernet MAC, USB 2.0, UART, SPI, TWI and I2S, ensuring high extensibility and flexibility for diverse system designs.

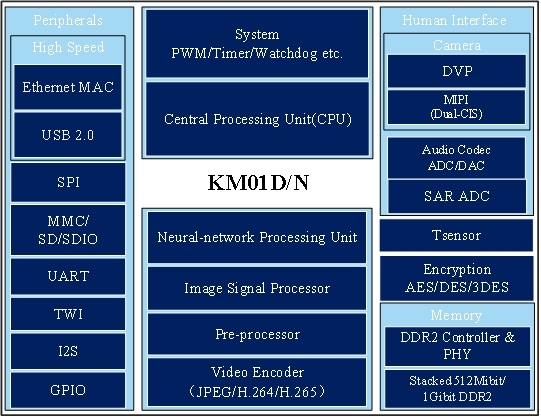

Functional Block Diagram

Specification

CPU

32-bit RISC CPU
Up to 900MHz working frequency

Memory
```
Stacked 512Mibit/1Gibit DDR2 SDRAM
```
Camera Interface
```
MIPI and DVP interfaces
Dual-CIS input
```

Neutral-network Processing Unit

Multiple applications such as object detection/tracking and face detection/recognition

Image Signal Processor

AWB, AE and AF
Gamma correction
Defect pixel correction
3D/2D noise reduction
Edge enhancement

Pre-processor

3 independent channels
Mirroring and flipping of input image
OSD and rectangle drawing

Video Encoder

H.265/H.264 encoding with resolution up to 3072*2048
JPEG encoding with resolution up to 16384*8192

Audio Codec

One 22-bit Sigma-Delta DAC
One 16-bit Sigma-Delta ADC

Peripheral Interfaces

MMC/SD/SDIO, USB2.0, Ethernet, TWI, UART, SPI, I2S

Security

Secure boot
AES/DES/3DES encryption algorithm
AES256 decryption algorithm and RSA2048 verification algorithm
SHA256 algorithm

Package
```
QFN88
```
