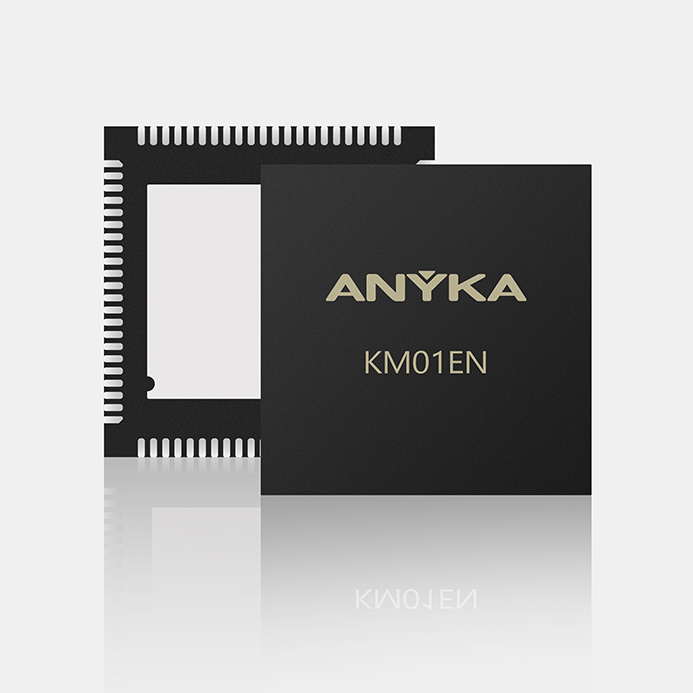

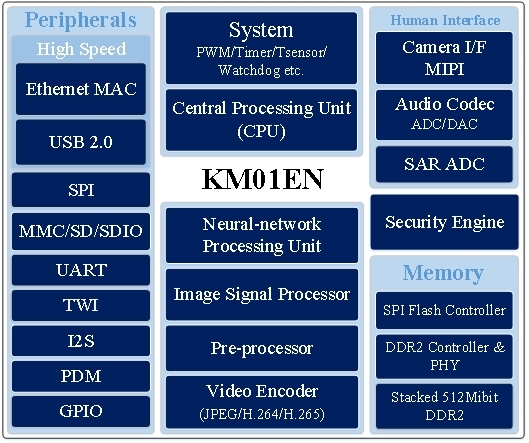

The KM01EN processor is specifically designed for Artificial Intelligence & Internet of Things (AIoT) cameras. The optimized image signal processor (ISP) and video processors, along with the Neural-network Processing Unit (NPU), enable powerful image processing capabilities, low-bit-rate video encoding and AI applications such as object detection and tracking, face detection and recognition—all while maintaining minimal power consumption. Besides, the secure boot function safeguards firmware integrity and ensures trusted system startup. Additionally, the processors offer a comprehensive set of peripheral interfaces, such as PDM, I2S, TWI, UART, SPI, MMC/SD/SDIO, Ethernet MAC and USB 2.0, providing high extensibility and flexibility.
32-bit RISC CPU Up to 900MHz working frequency
Stacked 512Mibit DDR2 SDRAM
Multiple applications such as object detection/tracking and face detection/recognition
MIPI interface Resolution up to 2880*2880
AWB, AE and AF Gamma correction Defect pixel correction 3D/2D noise reduction Edge enhancement
3 independent channels Mirroring and flipping of input image OSD and rectangle drawing
H.265/H.264 encoding with resolution up to 3072*4096 JPEG encoding with resolution up to 16384*8192
One 22-bit Sigma-Delta DAC One 16-bit Sigma-Delta ADC
MMC/SD/SDIO, USB2.0, Ethernet MAC, TWI, UART, SPI, I2S, PDM
Secure boot AES/DES/3DES encryption algorithm SM2/SM3/RSA/SHA/MD5 algorithm TRNG
QFN88
Multi-Lens Bullet-PTZ Camera
Dual-Lens Panoramic Stitching Camera
