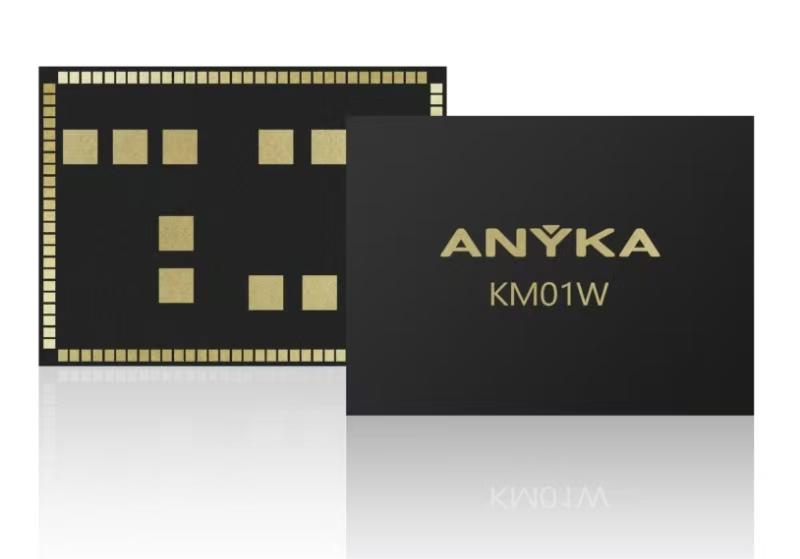

The KM01W processor is specially designed for Artificial Intelligence & Internet of Things (AIoT) cameras of Always-on Video (AOV) applications and AI glasses.

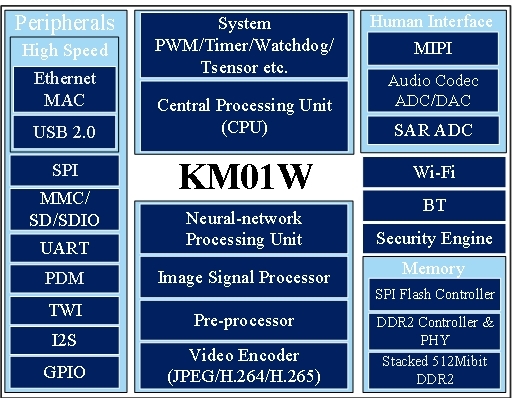

The optimized image signal processor (ISP) and video processors, and Neural-network Processing Unit (NPU), enable powerful image processing capabilities, low-bitrate video encoding and AI applications such as object detection and tracking, face detection and recognition—all while maintaining minimal power consumption. Notably, the KM01W processor is able to achieve even lower power consumption in shallow sleep mode, making it ideal for AOV applications. The built-in wireless module, supporting 2.4GHz and 5GHz Wi-Fi 6, as well as Bluetooth Basic Rate/Enhanced Data Rate (BR/EDR) and Bluetooth Low Energy (BLE) modes, provides reliable and high-speed wireless transmission. In terms of security, the secure boot function safeguards firmware integrity and ensures trusted system startup. Additionally, the processor offers a comprehensive set of peripheral interfaces, such as PDM, UART, SPI, I2S, MMC/SD/SDIO, Ethernet MAC and USB 2.0, providing high extensibility and flexibility.
32-bit RISC CPU Up to 900MHz working frequency
Stacked 512Mibit DDR2 SDRAM
Multiple applications such as object detection/tracking and face detection/recognition
MIPI interfaces Dual-CIS input
AWB, AE and AF Gamma correction Defect pixel correction 3D/2D noise reduction Edge enhancement
3 independent channels Mirroring and flipping of input image OSD and rectangle drawing
H.265/H.264 encoding with resolution up to 3072*4096 JPEG encoding with resolution up to 16384*8192
IEEE 802.11 a/b/g/n/ac/ax compliant Supports 20MHz/40MHz bandwidth Supports STA, AP, Wi-Fi Direct modes concurrently
One 22-bit Sigma-Delta DAC One 16-bit Sigma-Delta ADC
Ethernet, MMC/SD/SDIO, USB, UART, SPI, TWI, I2S, PDM
Secure boot AES/DES/3DES encryption algorithm SM2/SM3/RSA/SHA/MD5 algorithm TRNG
LGA120
Dual-Lens Zoom Camera
AI Camera
4G Solar-Powered Camera
Smart Glasses
Cube Camera
Baby Monitor (Monitor Unit)
