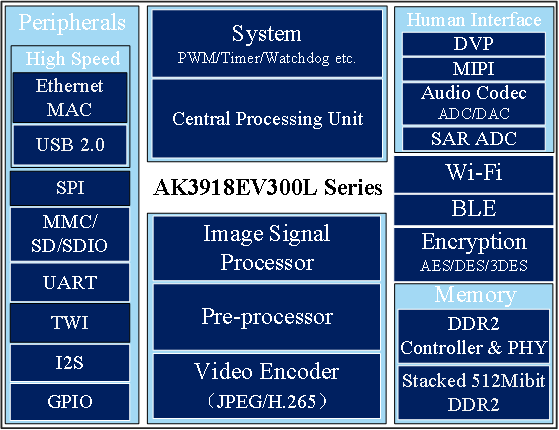

The AK3918EV300L series processors are designed for Internet of Things (IoT) cameras, a key component in cost-sensitive electronic surveillance systems. Equipped with an image signal processor (ISP), an H.265 encoder, and a hardware-accelerated AES/DES/3DES encryption engine, the AK3918EV300L series processors deliver efficient image processing and high-efficiency, high-fidelity video encoding at ultra-low power consumption, all while ensuring data security. The AK3918EV300L series processors integrate a 512Mibit DDR2 SDRAM, Wi-Fi, and BLE, thus reducing the bill-of-materials (BOM) cost of end products. Additionally, the AK3918EV300L series processors provide a wide range of peripheral interfaces, including MMC/SD/SDIO, Ethernet MAC, USB2.0, UART, SPI, TWI and I2S, ensuring high extensibility and flexibility for diverse product designs.
32-bit RISC CPU Up to 900MHz working frequency
Stacked 512Mibit DDR2 SDRAM
Supports MIPI and DVP interface
Image scaling Image flipping and image mirroring Rectangle drawing OSD
Supports 3A (AWB, AE, AF) Gamma correction Defect pixel correction 3D/2D noise reduction Edge enhancement
H.265 encoder, resolution up to 2304*1296 JPEG encoder, resolution up to 13680*7695
Compatible with 2.4GHz IEEE 802.11 b/g/n Supports AP, STA, AP+STA mode and P2P Supports HT20 and HT40 bandwidth transmission Supports WEP, WPA, WPA2, WPA3 personal security protocol
Compatible with BT specification v5.0 Supports Coded PHY (long range) Supports BT 1Mbps and 2Mbps Supports network configuration
Hardware AES, DES and 3DES engine
One 22-bit Sigma-Delta DAC One 16-bit Sigma-Delta ADC
Ethernet MAC, USB, SPI, MMC/SD/SDIO, UART, TWI, I2S, GPIO

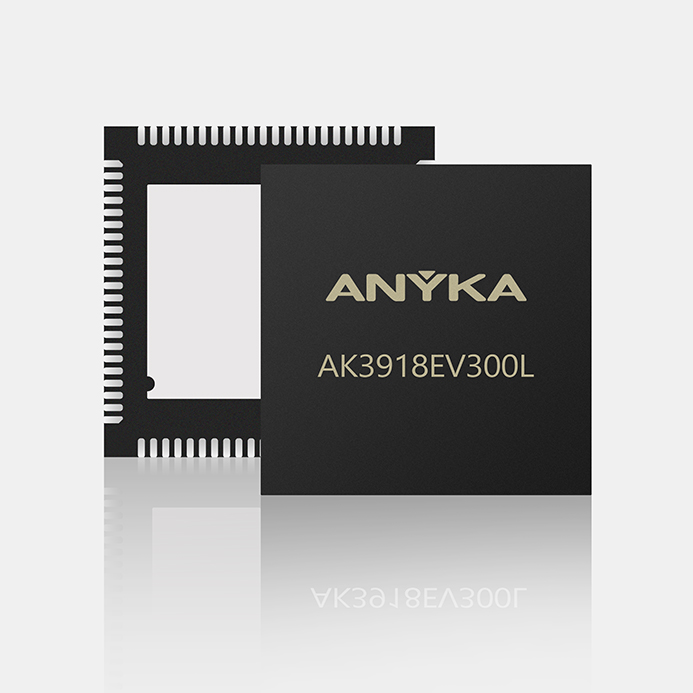

QFN88
Cube Camera
Barcode Scanner
Single-Lens PTZ Camera
