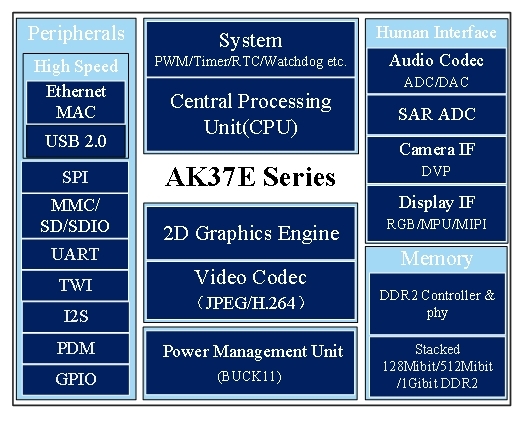

The AK37E series processors are designed for applications such as building intercom indoor units, central control panels, and human-machine interaction (HMI) display devices. Based on the ARM926EJ-S core, the processors incorporate a DVP interface, video and audio codecs, and a display controller, facilitating efficient processing of multimedia data and enhancing the visual and interactive capabilities of the HMI. The processors also integrate a comprehensive set of peripheral interfaces, including TWI, UART, SPI, MMC/SD/SDIO, and USB 2.0, supporting flexible peripheral configuration and improving overall product scalability for diverse application needs.
32bit RISC CPU Up to 800MHz working frequency
Stacked 128Mibit/512Mibit/1Gibit DDR2 SDRAM
Supports dual-sensor input Supports DVP interfaces
Image format conversion Down-scaling and up-scaling Image rectangular mapping Image cropping Alpha blending Rotation: 90°, 180°, 270°
Supports MJPEG encoding
Supports H.264/MJPEG decoding
Supports MPU/RGB/MIPI LCD Supports LCD size up to 1920*1920
One Sigma-Delta DAC One Sigma-Delta ADC
Ethernet MAC, USB, SPI, MMC/SD/SDIO, UART, TWI, I2S, PDM
ELQFP128
Baby Monitor (Parent Unit)
Industrial HMI Panel
Smart Home Control Panel
Video Indoor Station
Access Control and Time Attendance Terminal

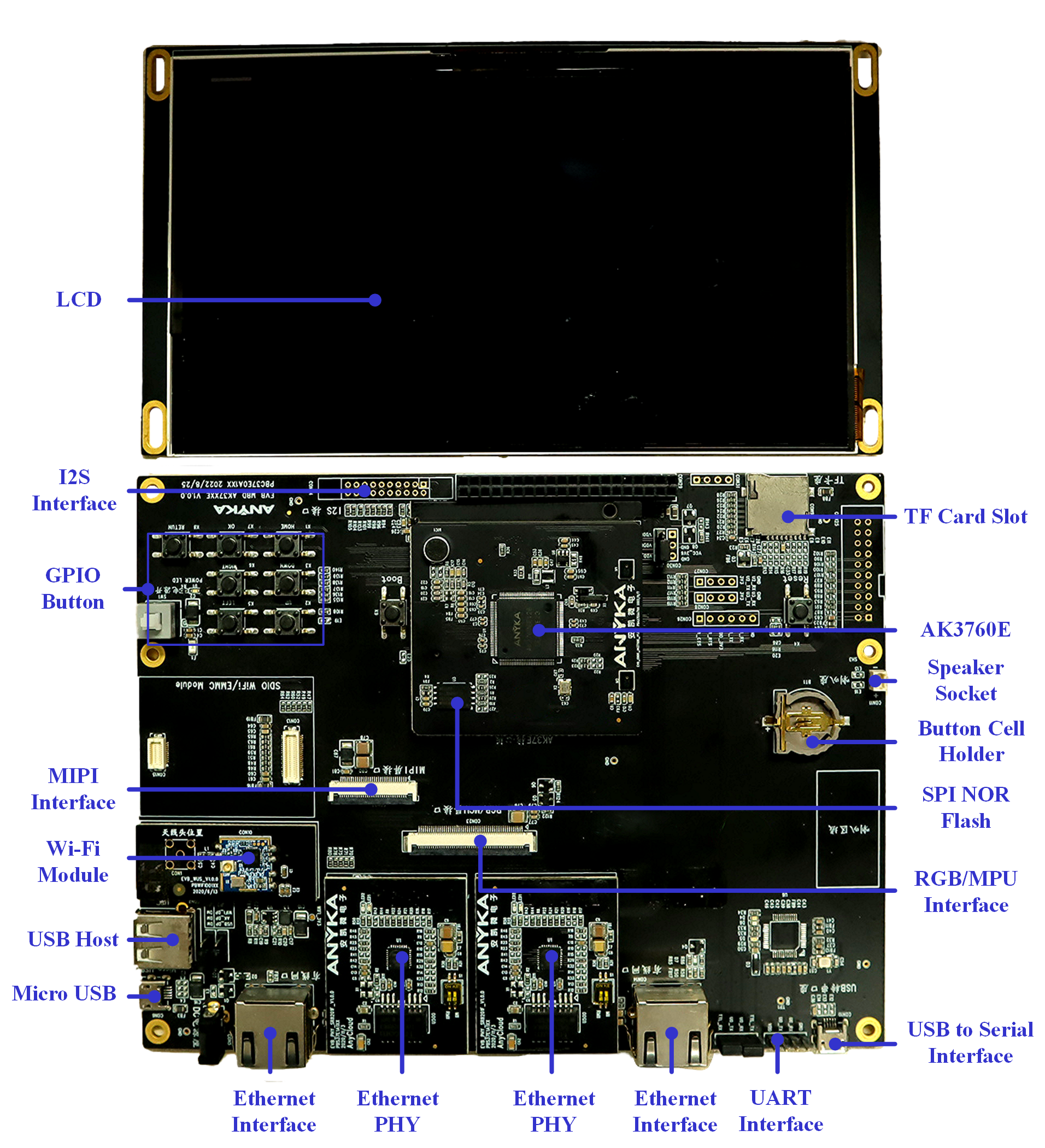

AnyCloud37E Development Board Set A (Indoor Unit of Building Intercom Application)
Apply Now
AnyCloud37E Development Board Set C (Biometric Attendance Device)
Apply Now
AnyCloud37E Development Board Set E (Indoor Unit of Building Intercom Application)
Apply Now
Sky37Ev2 Development Board Set C (Battery-powered Smart Lock Control and Display Module)
Apply Now

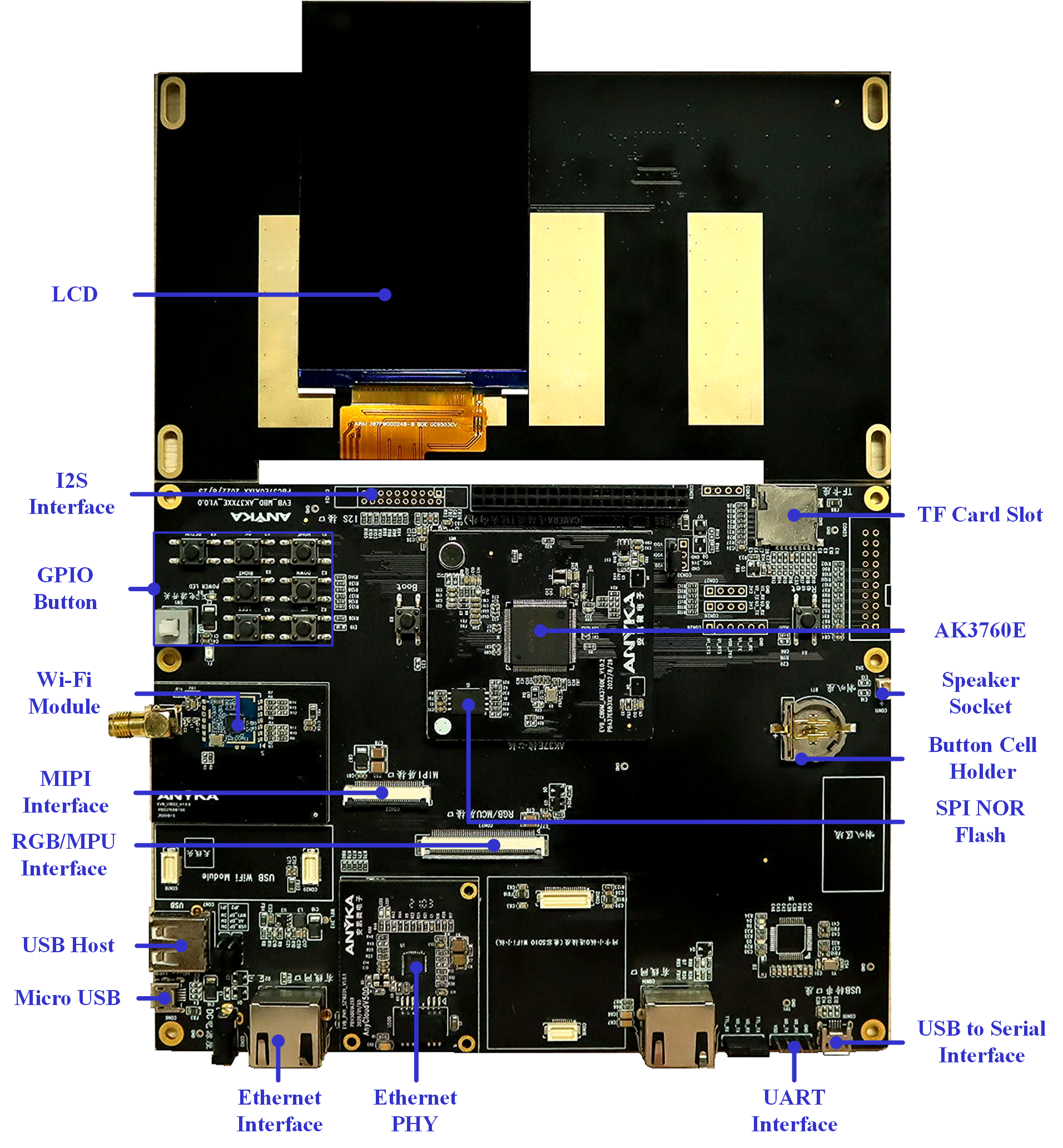

Sky37Ev2 Development Board Set D (HMI Application)
Apply Now
Sky37E Development Board Set A (Indoor Unit of Building Intercom Application)
Apply Now

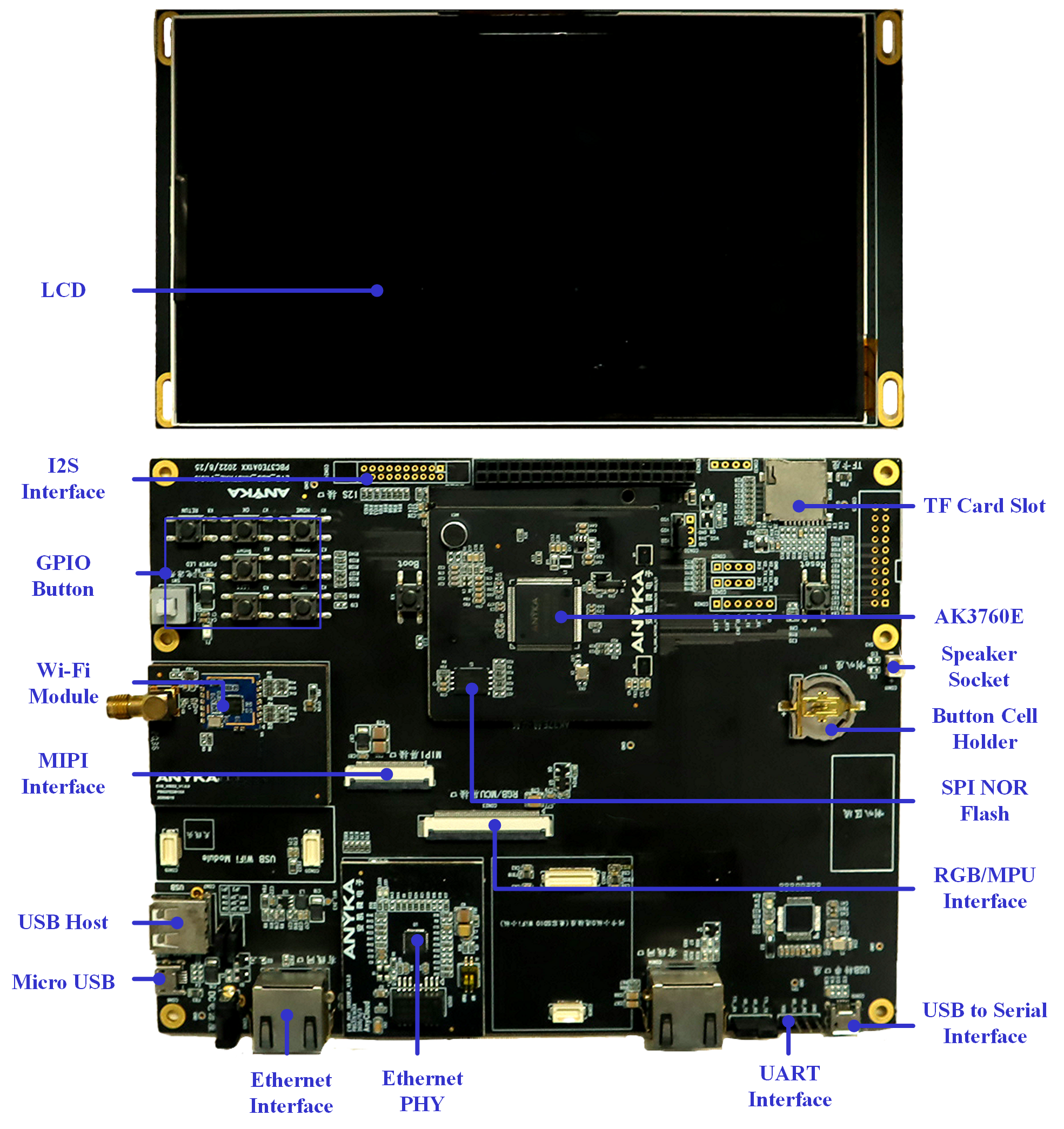

Sky37E Development Board Set C (Indoor Unit of Building Intercom Application)
Apply Now

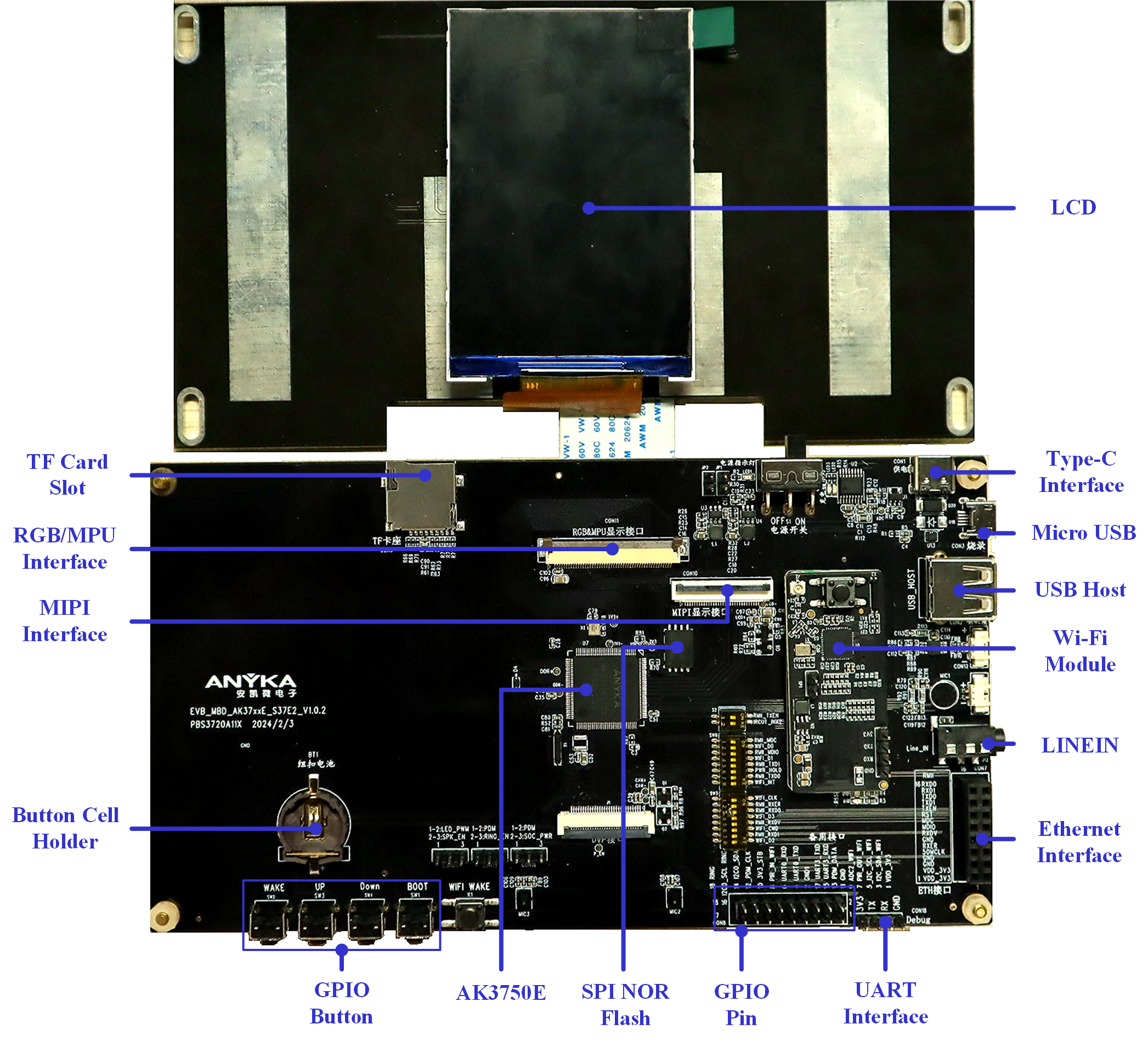

Sky37Ev2 Development Board Set A (Battery-powered Smart Lock Control and Display Module)
Apply Now

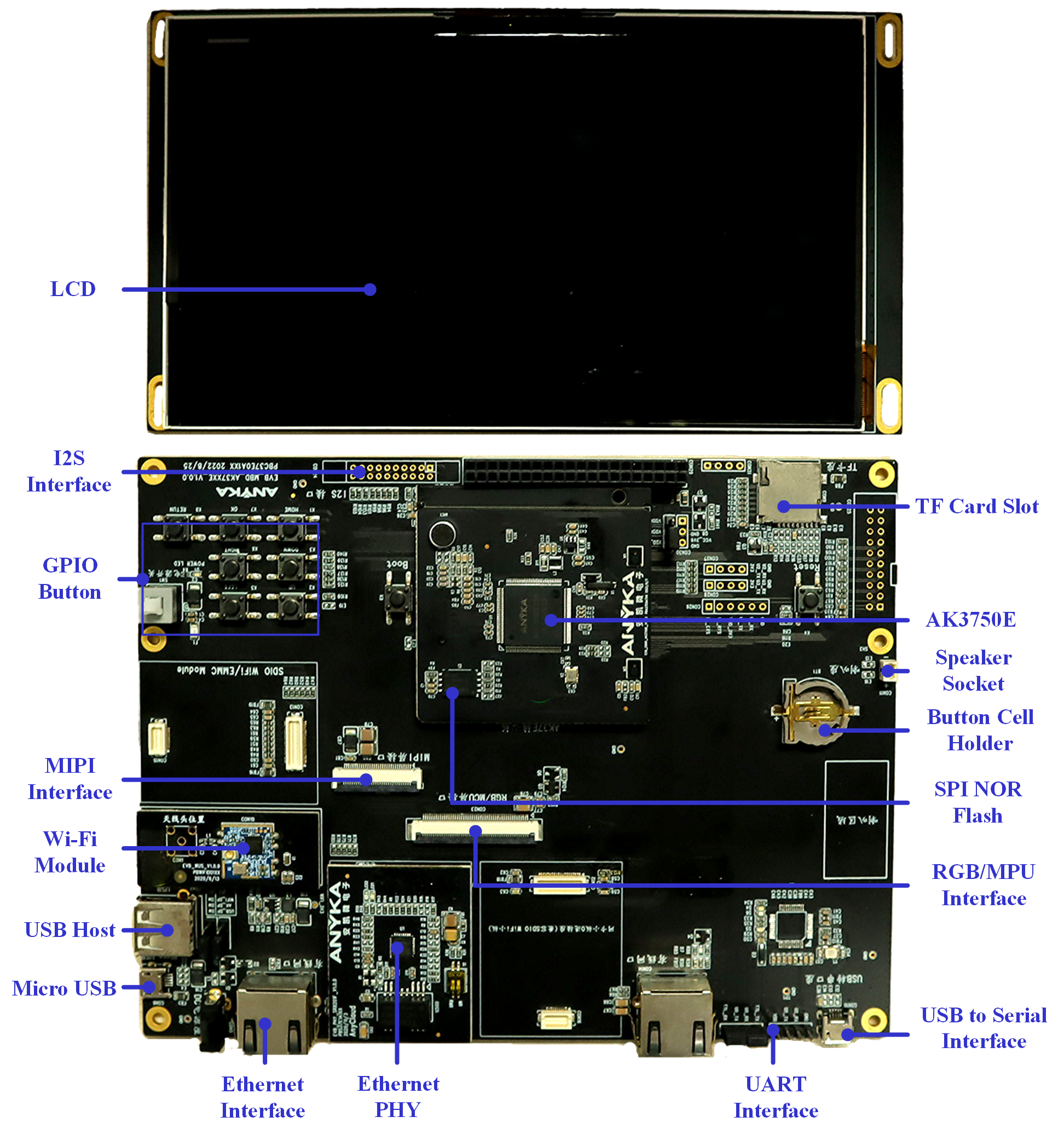

Sky37E Development Board Set E (HMI Application)
Apply Now

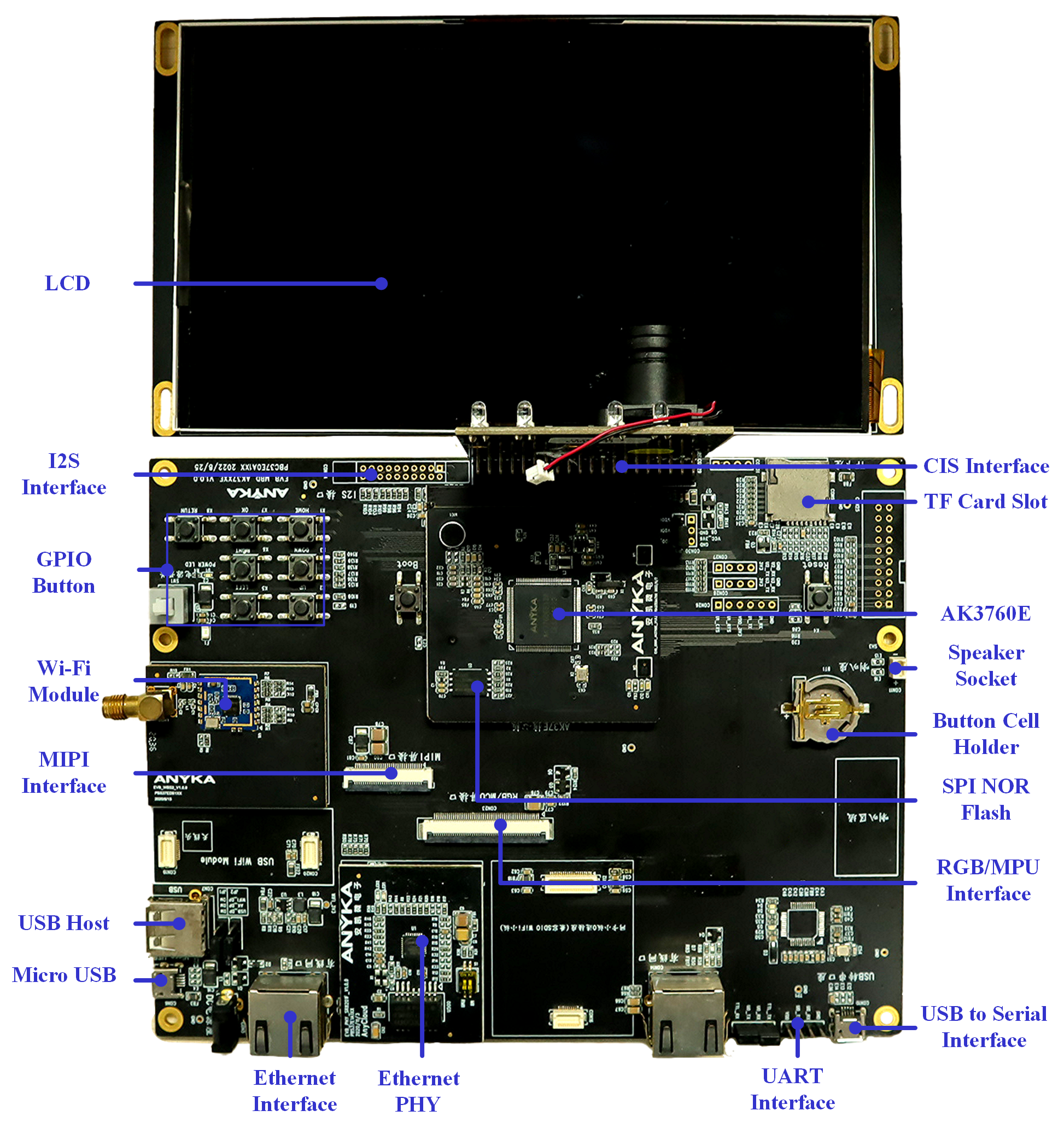

Sky37E Development Board Set D (Biometric Attendance Device Application)
