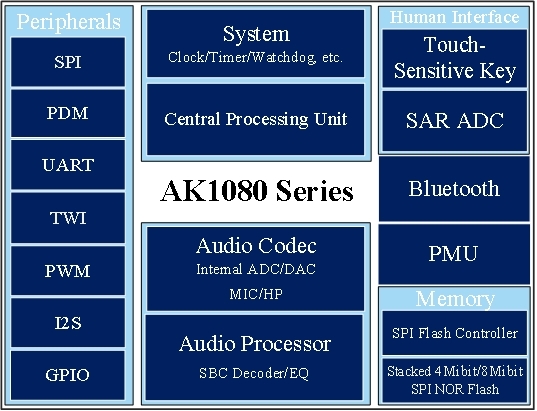

The AK1080 series processors are designed for applications such as TWS/OWS Bluetooth earbuds and Bluetooth speakers. Equipped with a Bluetooth module, an audio processor, and a power management unit, the AK1080 series processors deliver low-power consumption with consistent audio performance. Featuring two touch-sensitive keys, the processors support flexible and intuitive user interaction. Additionally, the AK1080 series processors provide a comprehensive set of peripheral interfaces, including I2S, PDM, UART, TWI, and SPI, enabling flexible system integration and supporting diverse audio and data communication needs.
32-bit RISC-V core Up to 300MHz working frequency
Stacked 4Mibit/8Mibit SPI NOR Flash
Compatible with Bluetooth specification v6.1 Supports dual mode: BR/EDR and BLE
Active mode Standby mode Sleep mode Deep sleep mode Power off mode
Two Sigma-Delta ADCs One Built-in Sigma-Delta DAC SBC decoding and EQ
SPI、PWM、UART、TWI、I2S、PDM、Touch-sensitive keys
QFN24 QFN32
Truly Wireless Earbuds
Open Ear Wireless Headphones
Bluetooth Speaker

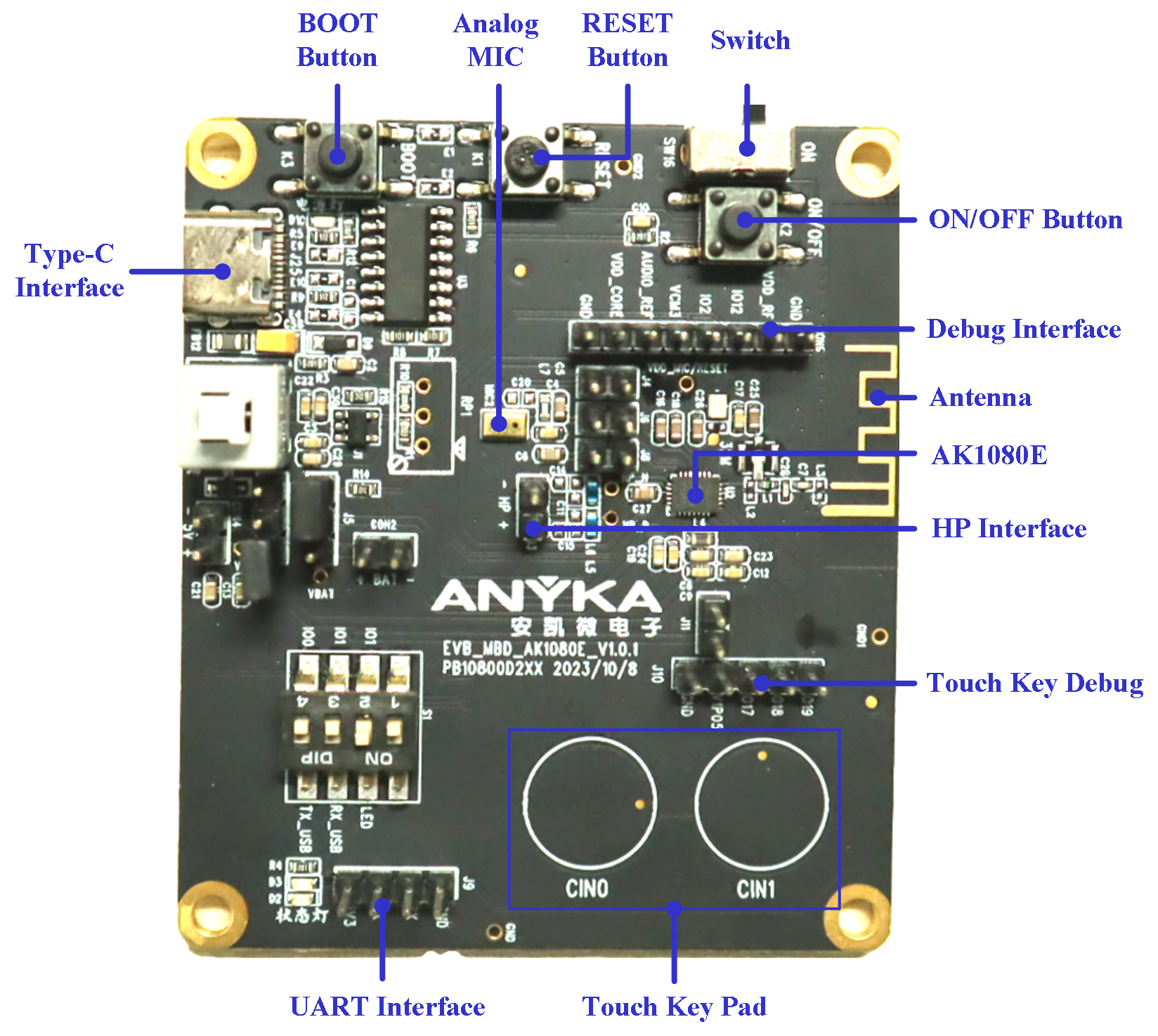

1080 Development Board Set A (TWS Earphone Application)
Apply Now
Product Description：
