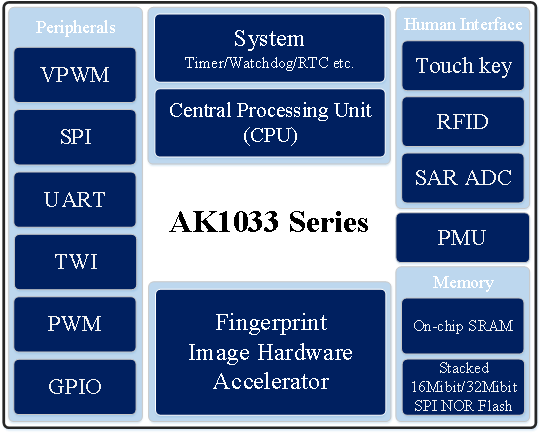

The AK1033 series processors are specifically designed for smart fingerprint door locks. The processors integrate a fingerprint image hardware accelerator and a power management unit, enabling high-accuracy biometric fingerprint recognition while meeting stringent low-power requirements. Additionally, the processors support a wide range of interfaces, including capacitive touch sensing inputs, RFID, SAR ADC, VPWM, PWM, TWI, SPI and UART, significantly reducing terminal product costs and enhancing design flexibility across diverse applications.
32-bit RISC core Up to 298MHz working frequency
Stacked 16Mibit/32Mibit SPI NOR Flash
Active mode Standby mode Low power mode Sleep mode Shutdown mode
Compatible with ISO/IEC.14443 Type A standard Card detection at regular intervals in low power mode
Hamming distance
15 capacitive touch keys Supports touch wake-up function Independent sensitivity adjustment via software Adaptive reference adjustment according to the environment
General purpose analog-to-digital conversion
VPWM, TWI, UART, PWM, SPI

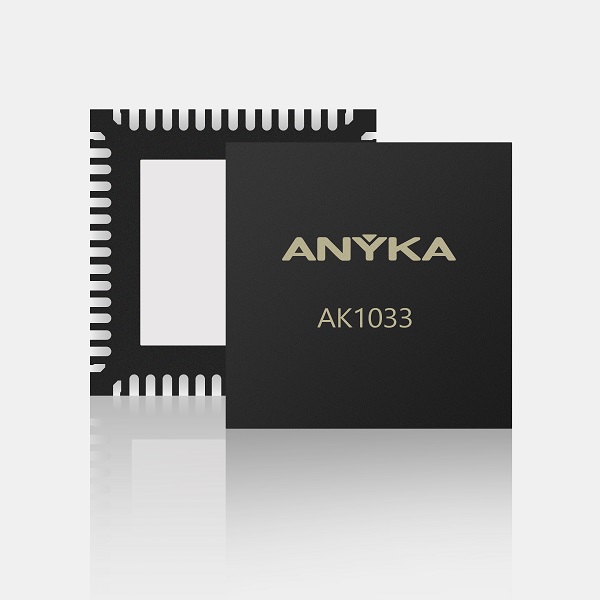

QFN40 QFN60
Fully Automatic Smart Lock
Semi-Automatic Smart Lock
