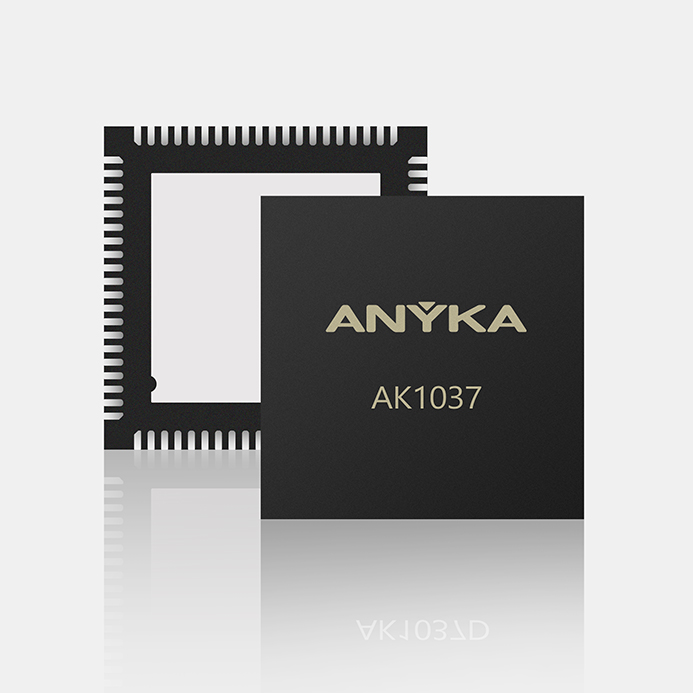

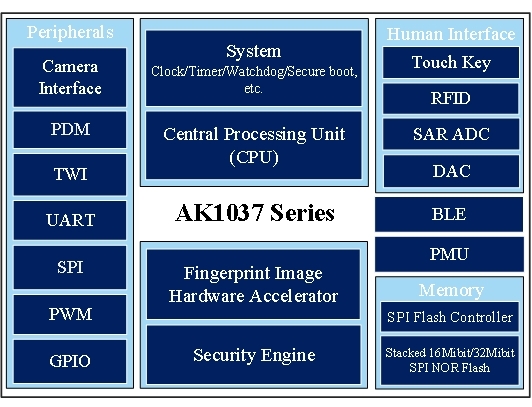

The AK1037 series processors are specifically designed for smart fingerprint door locks. The processors integrate a fingerprint image hardware accelerator and a power management unit, enabling high-accuracy biometric fingerprint recognition while meeting stringent low-power requirements. Additionally, the AK1037 series processors feature an embedded security engine, ensuring the robust security required for smart door lock products. Additionally, the processors support a wide range of interfaces, including capacitive touch sensing inputs, RFID, BLE, SAR ADC, PWM, TWI, SPI, UART, PDM, and camera interfaces, significantly reducing terminal product costs and enhancing design flexibility across diverse applications.
32-bit RISC core Up to 300MHz working frequency
Stacked 16Mibit/32Mibit SPI NOR Flash
Active mode Standby mode Low power mode Sleep mode Deep sleep mode Shutdown mode
Compatible with ISO/IEC.14443 Type A and Type B standard Card detection at regular intervals in low power mode
1D convolution, fixed-point multiplier, hamming distance, and euclidean distance
15 capacitive touch keys Supports touch wake-up function Independent sensitivity adjustment via software Adaptive reference adjustment according to the environment
Compatible with BT specification v6.1 BLE mode
General purpose analog-to-digital conversion
One audio DAC
DVP interface
Secure boot Symmetric/asymmetric encryption algorithm engine True Random Number Generator Light crypto engine
PDM, TWI, UART, PWM, SPI
QFN80
Fully Automatic Smart Lock
Semi-Automatic Smart Lock
